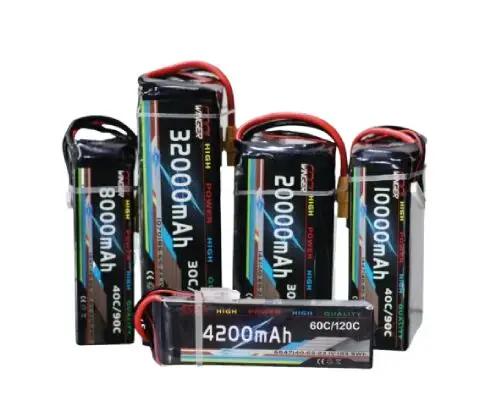

High-rate discharge battery

High-rate discharge lithium-ion batteries are capable of delivering a large amount of energy in a short time and are widely used in products that require power under high-load conditions, such as drones, FPV racers, power tools, electric toys, medical devices, and emergency communication equipment. Compared with conventional batteries, high-rate batteries offer much stronger instantaneous discharge capability, supporting stable discharge rates from 10C to 60C or even higher. This battery series uses high-power electrode materials and optimized electrolyte formulations, featuring low internal resistance, low heat generation, and stable energy output.
Get a Quote Custom Battery

FPV Drone Battery Model List

Here is a list of high-rate battery models suitable for use in FPV drones, racing drones, and similar products. These batteries feature a continuous high-power discharge rate of 60–100C, ultra-high pulse discharge rate of 120–200C, high discharge platform voltage, lightweight design, high energy density, and a wide operating temperature range. The energy density can reach 200–260 Wh/kg, and the operating temperature range extends from –40℃ to 60℃.
CapacityDischarge
Rate		Series & ParallelDischarge Platform
Voltage		Dimensions:
Thickness*width*heigh		Weight
250mAh100C/200C1S1P3.8V6.2*13*55mm10g
250mAh100C/200C2S1P7.6V12*13*55mm17g
1500mAh80C/180C6S1P22.2V36*41*95mm240g
1500mAh80C/180C8S1P29.6V48*41*95mm304g
1800mAh70C/150C6S1P23.7V50*35*75mm200g
1800mAh70C/150C8S1P31.6V67*35*75mm260g
3000mAh60C/120C6S1P22.2V38*68*105mm460g
3000mAh60C/120C8S1P29.6V50*68*105mm600g

Agricultural Spraying Drone Battery Model List

Here is a list of high-rate battery models suitable for agricultural plant protection drones. These batteries feature the following characteristics: low-temperature self-heating, high-temperature resistance, support for 2C–5C fast charging, self-diagnosis, charge/discharge self-protection, triple protection (waterproof, dustproof, and corrosion-resistant), and compatibility with all communication protocols.
CapacityDischarge
Rate		Series & ParallelDischarge Platform
Voltage		Dimensions:
Thickness*width*heigh		WeightEnergy
Density
16000mAh30C12S1P44.4V220*160*85mm4700g148Wh/kg
22000mAh25C12S1P44.4V230*170*115mm5800g165Wh/kg
25000mAh25C14S1P51.8V278*235*90mm9500g132Wh/kg
28000mAh25C14S1P51.8V285*238*95mm9100g158Wh/kg
20000mAh25C18S1P66.6V345*255*125mm11500g165Wh/kg

Electric Surfboard Battery Model List

Here is a list of high-rate battery models suitable for drones, aerial photography drones, electric surfboards, power tools, and electric bicycles. These batteries feature continuous high-power discharge rates of 30–60C, ultra-high pulse discharge rates of 75–120C, high energy density, and a wide operating temperature range. The energy density can reach 250–320 Wh/kg, and the operating temperature range extends from –40℃ to 60℃.
CapacityDischarge
Rate		Series & ParallelDischarge Platform
Voltage		Dimensions:
Thickness*width*heigh		Weight
4200mAh60C/120C6S1P23.1V37*48*155mm485g
4200mAh60C/120C8S1P30.8V49*48*155mm660g
6000mAh50C/100C6S1P23.1V49*48*155mm675g
6000mAh50C/100C8S1P30.8V65*48*155mm880g
7200mAh40C/90C6S1P22.8V62*45*150mm810g
7200mAh40C/90C8S1P30.4V82*45*150mm1120g
8000mAh40C/90C6S1P23.1V67*48*157mm880g
8000mAh40C/90C8S1P30.8V89*48*157mm1160g
9000mAh25C/50C6S1P22.8V70*46*145mm950g
9000mAh25C/50C8S1P30.4V94*46*145mm1250g
10000mAh40C/90C6S1P23.1V79*48*157mm1080g
10000mAh40C/90C8S1P30.8V104*48*157mm1450g
10000mAh30C/75C6S1P23.1V49*71*157mm1020g
10000mAh30C/75C8S1P30.8V64*71*157mm1330g
12000mAh30C/75C6S1P23.1V67*71*157mm1380g
12000mAh30C/75C8S1P30.8V89*71*157mm1850g
24000mAh30C/75C6S1P23.1V134*71*157mm2200g
24000mAh30C/75C8S1P30.8V178*71*157mm3000g
16000mAh30C/75C6S1P23.1V64*71*200mm1850g
16000mAh30C/75C8S1P30.8V85*71*200mm2400g
32000mAh30C/75C6S1P23.1V128*71*200mm3750g
32000mAh30C/75C8S1P30.8V170*71*200mm4950g
4000mAh10C/20C6S1P22.2V22*72*132mm430g
8000mAh10C/20C6S1P22.2V42*72*132mm886g

FAQs

What is a high-rate battery?

A high-rate battery is a lithium-ion battery specially designed to deliver large current output instantly. With a discharge rate typically ranging from 20C to 100C, it is ideal for applications requiring rapid response and strong power, such as drones and power tools.

High-rate batteries are optimized in electrode materials, conductive additives, tab design, and electrolyte formulation, enabling them to deliver high current in a short time. Regular lithium-ion batteries focus more on energy density and long runtime.

Typical applications include FPV racing drones, agricultural spraying drones, power tools, RC models, racing cars, and robotics, all of which demand instant high-power output.

High-rate batteries usually adopt stacking technology to reduce internal resistance, thicker tabs, multi-layer protection circuits, and optimized thermal management to keep the temperature rise under control during high current discharge, preventing overheating, swelling, or short circuits.

Generally, high-rate batteries sacrifice some cycle life to achieve instant high-current performance. However, with optimized electrode materials and structure, they can still maintain stable cycles of 300–500 times or more.

The discharge rate should be selected based on device power and peak current requirements. For example, FPV drones typically use 45C–75C batteries, while large agricultural drones may require 100C or higher.

Qualified high-rate batteries undergo strict testing, and their capacity and discharge ratings are reliable. However, under harsh conditions (such as excessive discharge current, high or low temperatures), the usable capacity may decrease.

Some high-rate batteries are designed to support 2C–5C fast charging, but they must be paired with dedicated fast chargers for safe and efficient use.

Yes. Irayenergy can customize multi-series and multi-parallel high-rate battery packs according to customer requirements, including working current, available space, operating temperature, and cycle life.
